Home / Equipment / Stirrers and shakers / JOANLAB heating magnetic stirrer · HS Max series

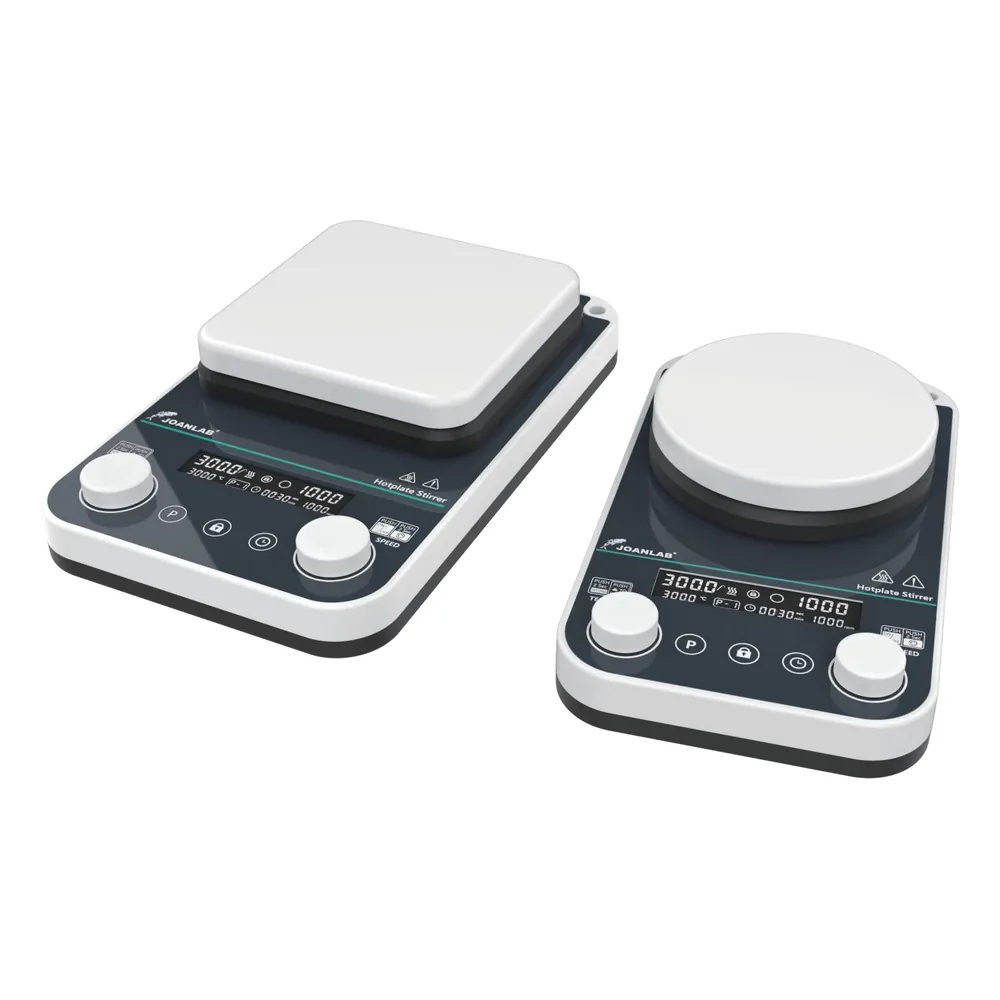

JOANLAB heating magnetic stirrer · HS Max series — 2-10 L, 50-1500 rpmTwo units of the series side by side, one with a square plate and one with a round plateThe four models of the series lined up, from the smallest to the largest plateTop view of the square plate and of the panel with display and two knobs
Stirrers and shakers · Heating magnetic stirrers

JOANLAB heating magnetic stirrer · HS Max series

HS-5Max · 2 L · Ø135 mmHS-6Max · 2 L · 135 × 135 mmHS-8Max · 5 L · 160 × 160 mmHS-10Max · 10 L · 200 × 200 mm

Stirrers with a ceramic-coated aluminum hotplate, from 2 to 10 L, with program memory, lock and residual heat warning.

  • Volumes of 2, 5 and 10 L
  • Ceramic-coated aluminum plate up to 310 °C
  • Program memory and one-touch lock
  • Residual heat warning and two temperature measurement methods
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Request a quoteView stirrers and shakers
Specifications

Summary datasheet

Maximum volume2 L (HS-5Max and HS-6Max), 5 L (HS-8Max), 10 L (HS-10Max)
Speed50-1500 rpm
Plate temperatureAmbient up to 310 °C
Top plateØ135 mm, 135 × 135, 160 × 160 and 200 × 200 mm depending on the model
Plate materialCeramic-coated aluminum
Temperature precision±1 °C in liquid; ±3 °C on the plate
ProbePT1000
Timer1 min to 12 h
Power300 W, 300 W, 500 W and 800 W depending on the model
Dimensions270 × 160 × 80 mm (HS-5Max and HS-6Max), 310 × 190 × 80 (HS-8Max) and 380 × 240 × 90 mm (HS-10Max)
AvailabilityImport to order / to be confirmed

The Max unifies: 310 °C and a timer across the ladder

The four sizes —Ø135 and 135 × 135 at 2 L, 160 × 160 at 5 L and 200 × 200 at 10 L— share a plate up to 310 °C, 50-1500 rpm, a 12 hour timer and stated accuracy of ±1 °C in liquid and ±3 at the plate. The 10Max is the only magnetic heater of the house stating 10 L.

A glass panel, and the 5's modules

The panel is corrosion-resistant glass and power runs from 300 to 800 W. The HS-5Max is listed among the units that take the HS-501 to 508 blocks from the parts page.
