Stirrers and shakers · Homogenizers

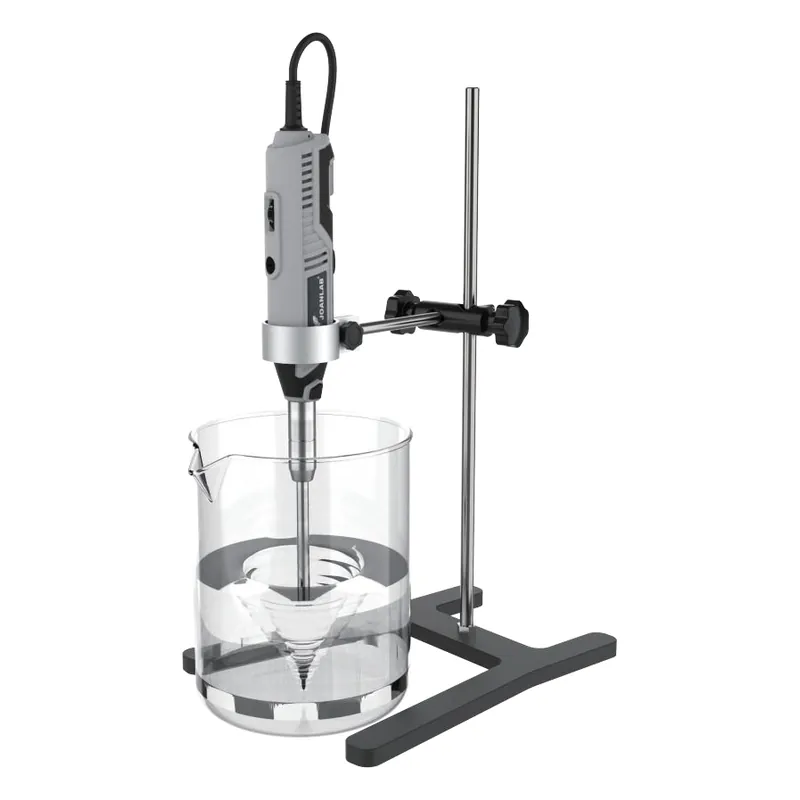

JOANLAB handheld homogenizer · MHZ series
Stainless steel handheld homogenizers for volumes from 0.5 to 250 mL, in mains (MHZ-01) and rechargeable (MHZ-02) versions.
- Volumes from 0.5 to 250 mL
- MHZ-01 mains-powered; MHZ-02 with rechargeable battery
- 10 mm standard head; 6 and 8 mm optional
- Body and shaft entirely of stainless steel
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Volume | 0.5 to 250 mL |
| Speed | 5000-35,000 rpm (MHZ-01); 0-25,000 rpm (MHZ-02) |
| Regulation | Continuous, with six levels |
| Head | Ø10 mm standard (5-250 mL); Ø8 mm (1-100 mL) and Ø6 mm (0.5-50 mL) optional |
| Head material | 316 stainless steel |
| Continuous operation | ≤10 min |
| Power supply | 160 W from mains (MHZ-01); 12 V DC battery (MHZ-02) |
| Dimensions | Ø50 × 355 mm (MHZ-01); Ø50 × 375 mm (MHZ-02) |
| Compatibility | The mains and battery versions are not interchangeable |
| Shipping package | 37 × 24 × 10 cm and 1.1 kg |
| Availability | Imported to order / to be confirmed |
Handheld, from 0.5 to 250 mL
These are the micro-batch homogenizers, with 316 steel blades. The MHZ-01 is plug-in and states 5000 to 35,000 rpm at 160 W; the MHZ-02 runs on battery, 0 to 25,000 rpm. Stated continuous work reaches 10 minutes.
The blade defines the vessel
The standard Ø10 mm covers 5 to 250 mL; the optional Ø8 and Ø6 go down to 1-100 and 0.5-50 mL. The stand —a 304 rod on an aluminum base— is optional.
