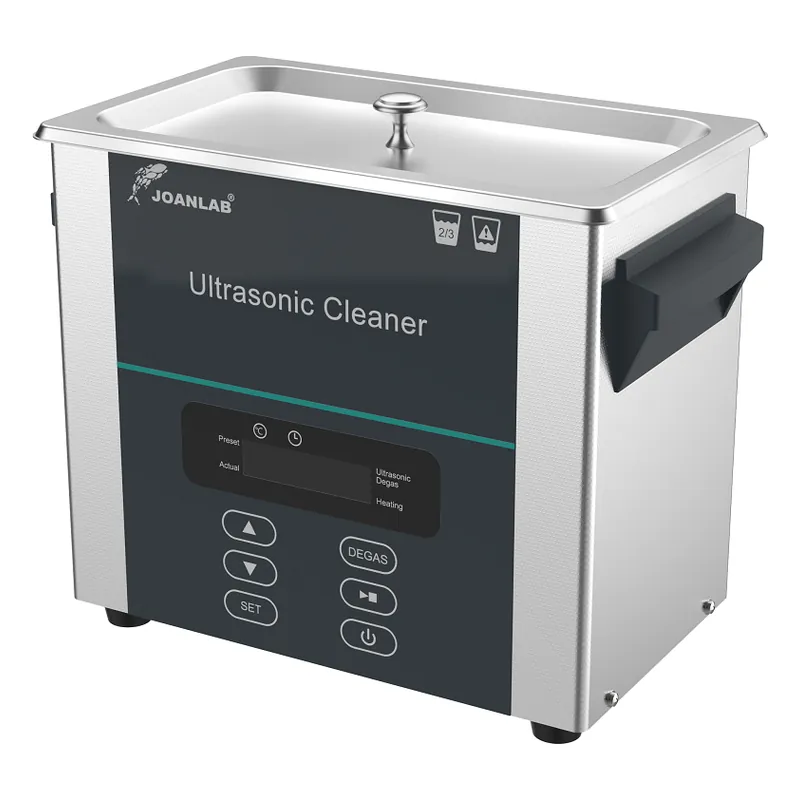

JOANLAB ultrasonic cleaner · UC series
Ultrasonic cleaners from 2 to 28 L at 40 kHz, with a stainless steel tank, timer, heating up to 80 °C and a degassing function.
- Seven capacities, from 2 to 28 L
- Operating frequency of 40 kHz
- Heating up to 80 °C and degassing across the whole range
- Drain valve from the 6 L model up
Manufacturer video
It shows the closed unit, with the tank drain valve, and then the working sequence: filling the tank to cover at least two thirds of its capacity, setting temperature and time on the panel and lowering the steel basket with the material inside. The examples the manufacturer uses range from glassware and metal parts to eyeglasses.
Original material from JOANLAB, with no audio and with on-screen text in English.
Summary datasheet
| Capacities | 2, 3, 6, 10, 15, 20 and 28 L |
| Operating frequency | 40 kHz |
| Transducers | 1, 2, 3, 4, 6, 6 and 8 depending on the model |
| Ultrasonic power | 60, 120, 180, 240, 360, 360 and 480 W depending on the model |
| Timer | 0 to 60 min |
| Temperature | Ambient up to 80 °C |
| Degassing | Yes, across the whole range |
| Drain valve | Not fitted on the UC20D, the UC30D or the UC60D; fitted from the UC100D up |
| Handle | Not fitted on the UC20D; fitted from the UC30D up |
| Tank | Stainless steel |
| Tank dimensions | 150 × 138 × 100 mm (UC20D), 238 × 138 × 100 (UC30D), 302 × 152 × 150 (UC60D), 302 × 239 × 150 (UC100D), 325 × 295 × 150 (UC150D), 498 × 296 × 150 (UC200D) and 502 × 298 × 200 (UC300D) |
| External dimensions | 161 × 149 × 217 mm (UC20D), 251 × 149 × 217 (UC30D), 311 × 161 × 272 (UC60D), 308 × 248 × 315 (UC100D), 335 × 305 × 315 (UC150D) and 510 × 308 × 343 (UC200D and UC300D) |
| Shipping package | 25 × 25 × 30 cm and 2.5 kg (UC20D); 34 × 25 × 31 cm and 4 kg (UC30D); 43 × 30 × 40 cm and 6 kg (UC60D); 44 × 36 × 43 cm and 8 kg (UC100D); 47 × 42 × 46 cm and 11.2 kg (UC150D); 65 × 42 × 46 cm and 13.7 kg (UC200D); 65 × 42 × 46 cm and 14.9 kg (UC300D) |
| Availability | Import to order / to be confirmed |
Seven tanks from 2 to 28 L, all at 40 kHz
The frequency is one; what scales with the tank is ultrasonic power —from 60 W with one vibration head to 480 W with eight— and the inner size. A 0 to 60 minute timer, heating to 80 °C and degassing come across the whole line.
The details arrive with size
Handles appear from the UC30D and the drain valve from the UC100D — right where the tank passes 10 L. Inner tanks run from 150 × 138 × 100 mm to 502 × 298 × 200.
