Heating equipment · Thermostatic water baths

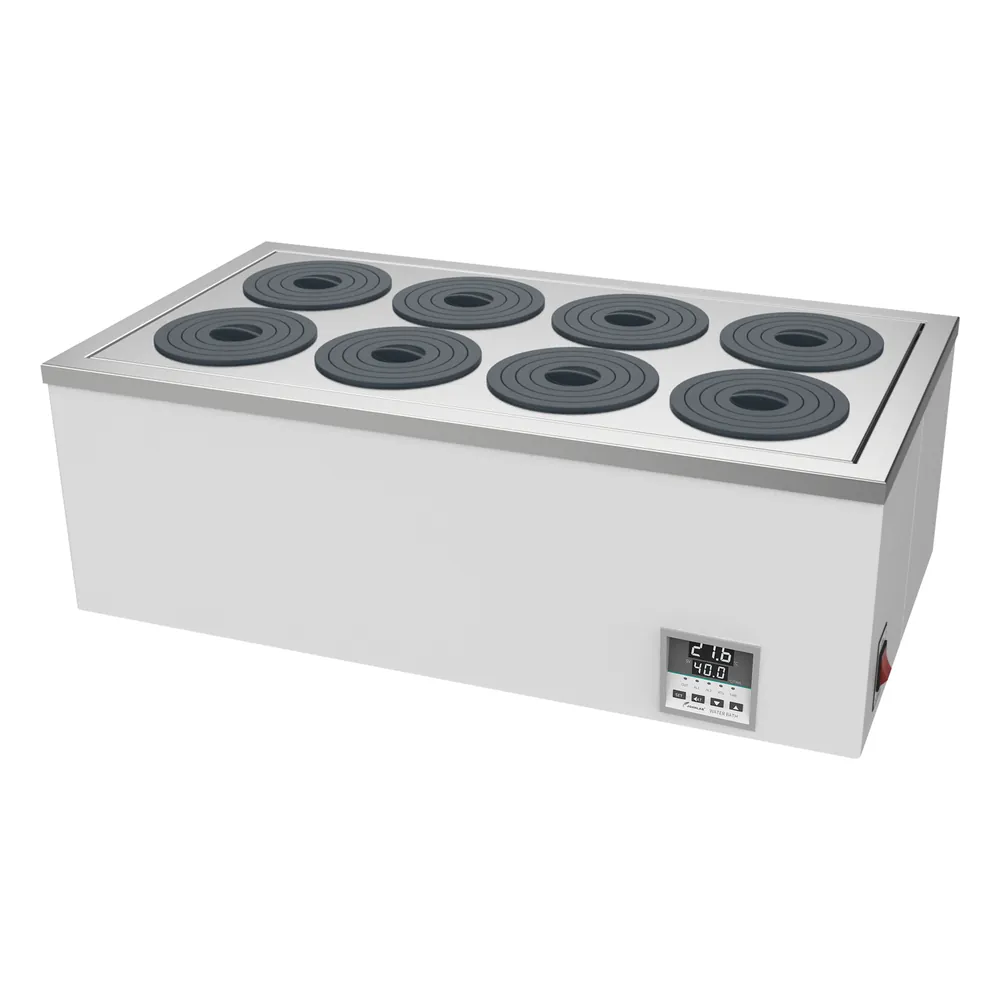

JOANLAB thermostatic water bath · WB100 series
WB100-1 · 3 LWB100-1F · 3 L · anti-dryWB100-2 · 6 LWB100-2F · 6 L · anti-dryWB100-4 · 12 LWB100-4F · 12 L · anti-dryWB100-6 · 18 LWB100-6F · 18 L · anti-dryWB100-8 · 24 LWB100-8F · 24 L · anti-dry
Thermostatic water baths from 3 to 24 L with a one-piece stainless steel tank, digital control up to 99.9 °C and stated accuracy of ±0.1 °C.
- Five capacities, from 3 to 24 L, with power ratings from 300 to 1500 W
- The F version adds protection against dry running
- One-piece stainless steel tank
- Digital control from ambient temperature up to 99.9 °C, with stated accuracy of ±0.1 °C
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Capacities | 3, 6, 12, 18 and 24 L |
| Temperature range | From ambient temperature up to 99.9 °C, with stated accuracy of ±0.1 °C |
| Versions | Each capacity is quoted in a standard version and in an F version, which the catalog describes as "anti-dry" and the price list as "prevent dry burn": protection against dry running |
| Power | 300 W (3 L), 600 W (6 L), 800 W (12 L), 1200 W (18 L) and 1500 W (24 L) |
| Tank dimensions | 160 × 160 × 130 mm (3 L), 300 × 150 × 140 mm (6 L), 300 × 300 × 140 mm (12 L), 450 × 300 × 130 mm (18 L) and 620 × 300 × 120 mm (24 L) |
| Lid openings | 1, 2, 4, 6 and 8 depending on capacity |
| 24 L model without dry-run protection | The WB100-8 is quoted in the price list, but the specification table in both editions of the catalog tabulates only the WB100-8F in that column. Pending confirmation with the supplier |
| Stability and uniformity | To be confirmed with the supplier: the catalog states only an accuracy of ±0.1 °C |
| Timer | To be confirmed with the supplier: the panel has a time indicator, but the specification table does not state the range |
| Power supply | To be confirmed with the supplier: the catalog states neither voltage nor frequency for this series |
| External dimensions | To be confirmed with the supplier: the catalog states them only for the Pro series |
| Control panel | The family photograph comes from the 2025 edition of the catalog; the 2026 edition and the price list show a different controller, with dual alarm and auto-tuning. Configuration to be confirmed when ordering |
| Shipping package | 54 × 21 × 25 cm and 5 kg (6 L); 40 × 40 × 25 cm and 7 kg (12 L); 57 × 40 × 25 cm and 9 kg (18 L); 72 × 40 × 26 cm and 8.6 kg (24 L). The 3 L unit ships in a four-unit carton and its individual package is to be confirmed |
| Availability | Import to order / to be confirmed |
Five capacities, and the F that will not run dry
The ladder runs from 3 to 24 L, from 300 to 1500 W. All of them regulate up to 99.9 °C with a stated accuracy of ±0.1 °C, so the real choice is the size and whether you want the anti-dry protection, which is what the F brings. At 24 L the catalog tables only the F version.
The extra liter is made in surface, not in depth
The chambers grow sideways: from 160 × 160 mm at 3 L to 620 × 300 mm at 24, with depths barely moving between 120 and 140 mm. More capacity means more vessels at once, not taller vessels.
